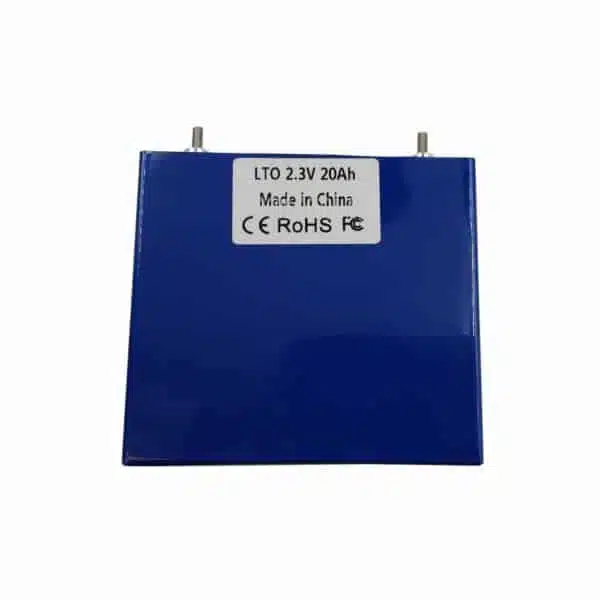

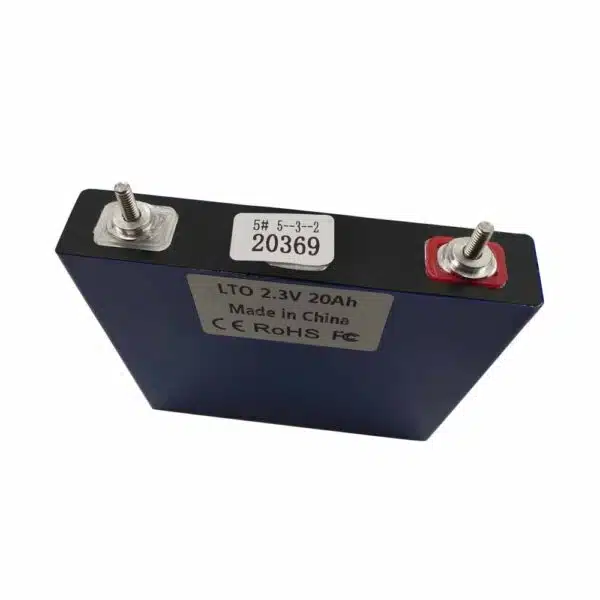

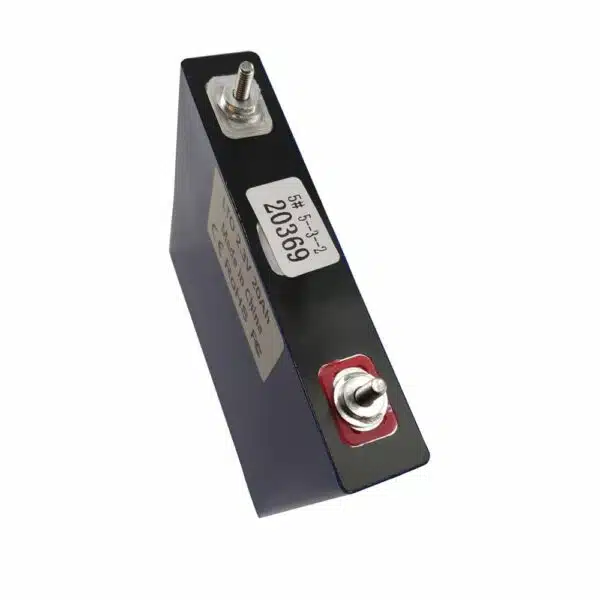

2.3V 20Ah 35C Prismatic LTO Cell With M4 Threading
8 in stock
$23.75
8 in stock
[ti_wishlists_addtowishlist]Compare
2.3V 20Ah 35C Prismatic LTO Cell With M4 Threading.
Description
2.3V 20Ah 35C Prismatic LTO Cell With M4 Threading.
LTO 20AH
| Rated capacity | 20Ah |
| Minimum capacity | 19.5Ah |
| Internal impedance | ≤0.5mΩ |
| Nominal Voltage | 2.3V |
| Cell weight | 0.52Kg |
| Standard discharge conditions | Recommended constant current – 200A (10C)
End-of discharge voltage – 1.5V |
| Standard charge method | Recommended constant current – 60A (3C)
Charge voltage – 2.7V |
| Max continuous discharge current | 500A |
| Cycle life | 20000 cycles |
| Operating temperature | charging ambient temperature – 0~55 ͦC
Discharging ambient temperature – -30~55 ͦC Storage temperature – 0~30 ͦC |
| Appearance | Without break,
distortion, contamination, leakage. |
https://bmsbatteries.com/product/2-3v-20ah-35c-prismatic-lto-cell-with-m4-threading/
TS 2.3V 20Ah 35C peak discharge Lithium Titanate Battery Cell
Additional information
| Weight | 21 oz |
|---|---|
| Dimensions | 4.7 × 4.7 × 1.0 in |
