Sodium Ion Battery 33140 3.1V 10Ah 31Wh (12C) Cylindrical Battery
52 in stock
$9.98
52 in stock
Add to Wishlist
CompareAdd to Wishlist
Sodium Ion Battery 33140 3.1V 10Ah 31Wh (12C) Cylindrical Battery
Description
Sodium Ion Battery 33140 3.1V 10Ah 31Wh (12C) Cylindrical Battery.

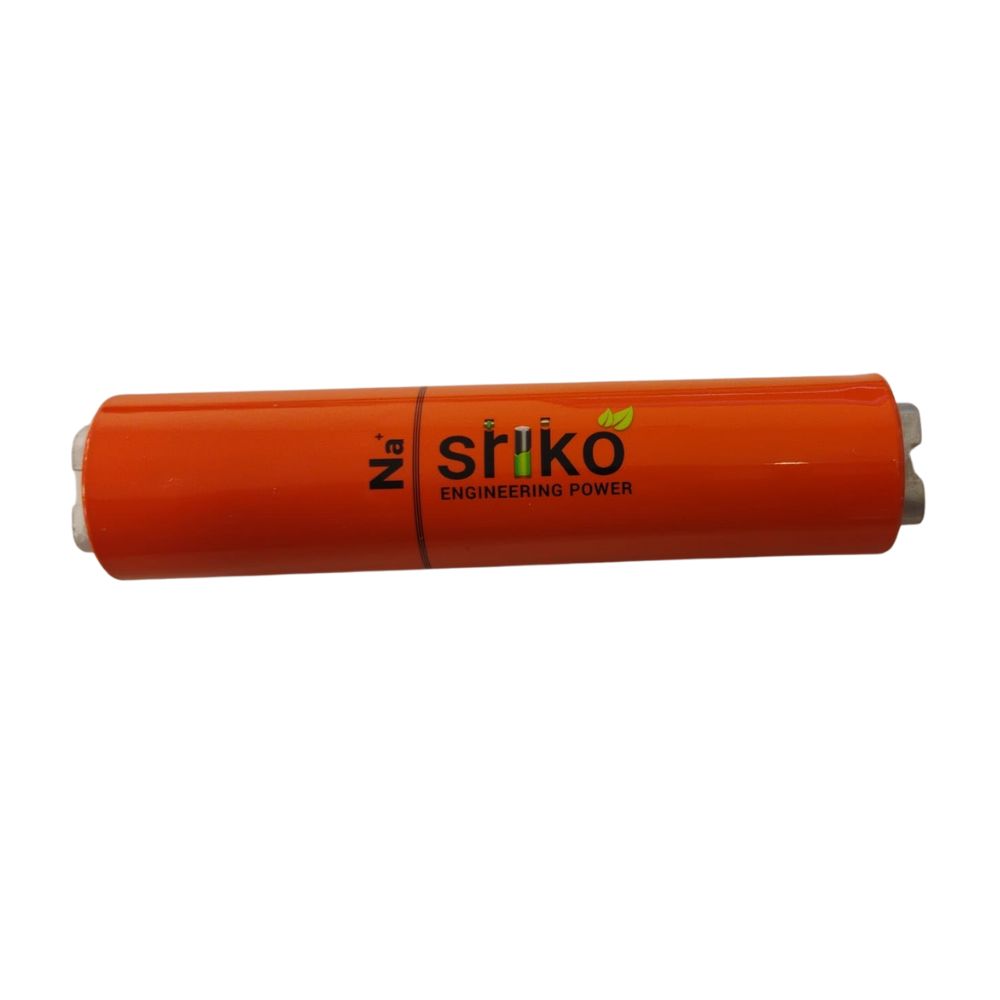

Sodium Ion 33140
| Items | Specifications |
| Product Name | Sodium Ion Battery 33140 |
| Nominal Voltage | 3.0V |
| Nominal Capacity | 10Ah |
| Operating Voltage | 2.0V ~4.0V |
| Charge Cut-off Voltage | 3.1V |
| Discharge Cut-off Voltage | 2.0V |
| Energy | 31Wh |
| Cell dimensions | 33 mm *140 mmW/Terminal) |
| Battery Weight | 230±5.0g |
| Minimum Operation Temperature | -40C / -40F |
| Charging Temperature | 0~55ºC / 32F~131F |
| Discharge Temperature | -40~60ºC / -40F~140F |
| Optimum Temperature | 25C / 77F |
| Maximum Operation Temperature | 60C / 140F |
| Storage Temperature | 20~30°C / 68F~86F |
| Standard Charge Current | 0.5C |
| Max Charge Rate | 6C / 108Amps |
| Standard Discharge Current | 0.5C |
| Max Continuous Discharge Current | 10C |
| Max Pulse Discharge Current | 15C / 270amps |
| Cycle Life | using Standard Rate Max/Min Voltage Less Than 70% Fading- 3000 Cycles |
| Max Cycle Life | 5000 Cycles |
| Data Sheet | 33140-Data-Sheet |
Excellent low temperature resistance: Sodium-ion batteries can work normally in the temperature range of -30°C to 60°C, and the capacity retention rate is close to 90% in the environment of -20°C.
Long cycle life: Relative long life times compares to lithium battery.
Fast charging: The magnification performance is good. The charging time of sodium-ion batteries can be shortened to 1/5 of that of lithium-ion battery
High safety: The Sodium-ion batteries can actually be safely discharged to 0 V (true 0% SOC).
NOTE: Please contact us kruthala@srikobatteries.com for specifications.
