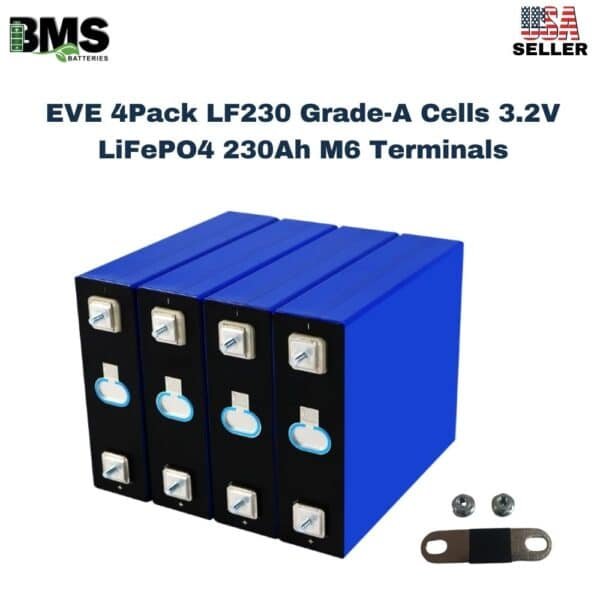

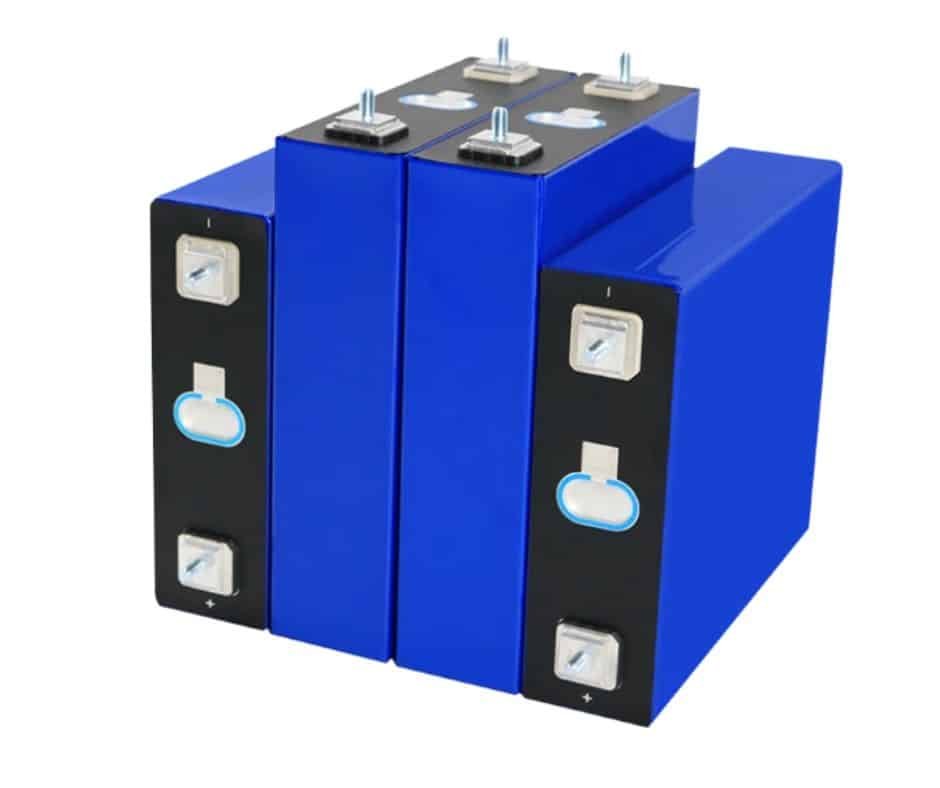

EVE 4Pack LF230 Grade-A Cells 3.2V LiFePO4 230Ah M6 Terminals

SKU: EVE 230Ah 4Pack
57 in stock
$259.35
57 in stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
Compare
Other people want this. 2 people have this in their carts right now.

EVE 4Pack LF230 Grade-A Cells 3.2V LiFePO4 230Ah M6 Terminals

Description

EVE 4Pack LF230 Grade-A Cells 3.2V LiFePO4 230Ah M6 Terminals

EVE 230Ah 4Pack

What you will get:

  • Cell
  • Bus bars
  • Nuts
ConditionUNITS
Model NameLF230
FormPrismatic
Nominal Capacity230Ah
Optional Voltage2.5V-3.65V
Nominal Voltage3.2V
Cycle Life≥3500 Cycles
AC Impedance Resistance (1KHz)≤0.3mΩ
Size207.3* 173.9 * 54.0 mm
Weight4.11±0.1kg Per one cell
Standard Charge and Discharge Charge/Discharge Current0.5C/0.5C
Pulse Charge/Discharge Current(30s)2C/2C
Charging Temperature0℃~60℃
Discharging Temperature-30℃~60℃
Data SheetEVE 230Ah Specifications



https://bmsbatteries.com/product/eve-4pack-lf230-grade-a-cells-3-2v-lifepo4-230ah-m6-terminals/

Additional information

Weight579 oz
Dimensions14 × 13 × 10 in
