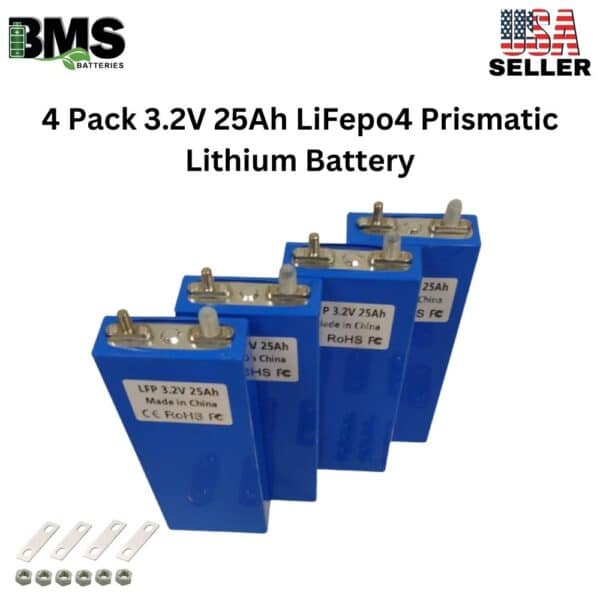

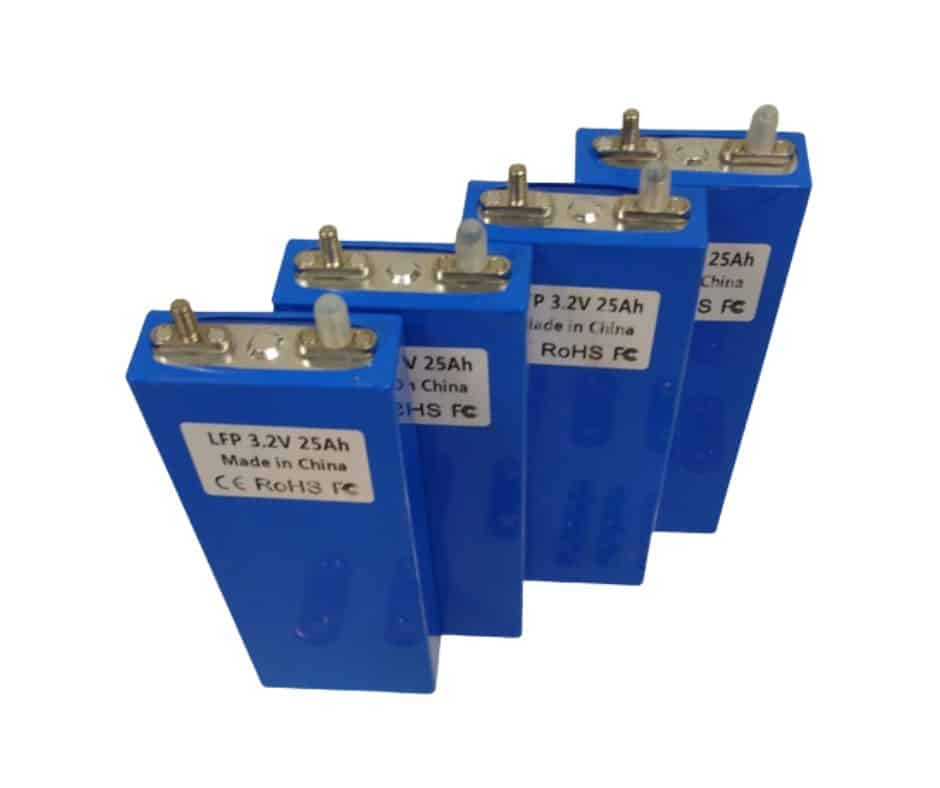

4 Pack 3.2V 25Ah LiFepo4 Prismatic Lithium Battery

SKU: 25Ah Prismatic Cells
99 in stock
$47.88
99 in stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
Compare
Other people want this. 7 people have this in their carts right now.

4 Pack 3.2V 25Ah LiFepo4 Prismatic Lithium Battery

Description

4 Pack 3.2V 25Ah LiFepo4 Prismatic Lithium Battery

25Ah Prismatic Cells

Condition UNITS
Maximum Charging Voltage 3.65V
Nominal Voltage 3.2V
Rated Capacity 25Ah
Standard Charging Current 0.5C
Maximum Charging Current 1C
Discharge Cut off Voltage 2.5V
Operating Temperature Charge: 0℃ – 45℃

Discharge: -20℃ – 60℃

Storage Temperature 15℃ – 35℃
AC Impedance Resistance (1KHz) ≤2.0
Size Thickness: 27.2 mm

Width: 70.2 mm

Length: 180.0 mm

Weight Approx. 0.64kg per cell
Data Sheet Specifications of 25Ah prismatic cells



Additional information

Weight 93.8 oz
Dimensions 10 × 7 × 2 in
